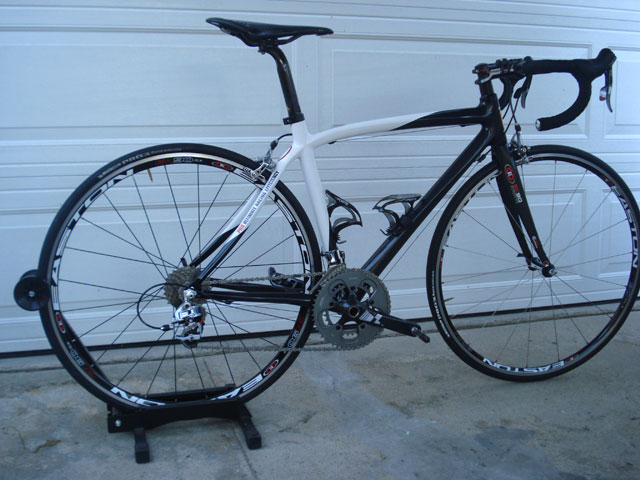

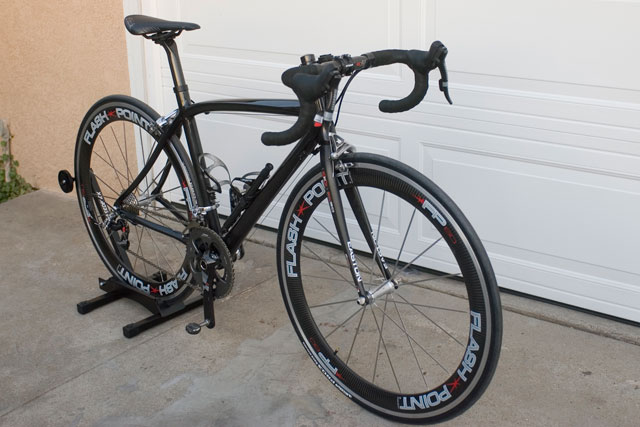

Pedal Force RS2 Monocoque Carbon
Fiber Frame
Black 3K \ White and Black 3K frame. |
Read Ride Review
and parts reviews also
Updated 7-23-2012
Fill free to email me if you have any questions:
email
|

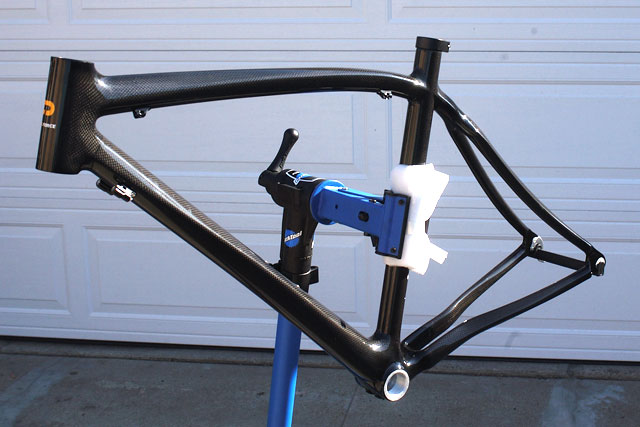

Frame: RS2 actual
weight 827.3 grams = 1 14.60 lb.
Frame size : 49 cm
Color : Black 3K carbon weave

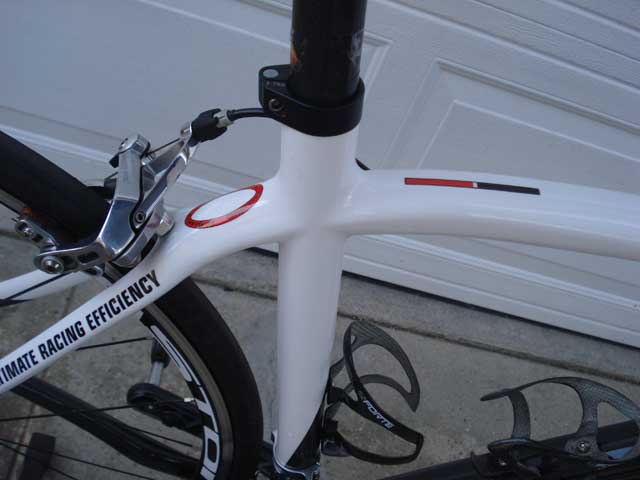

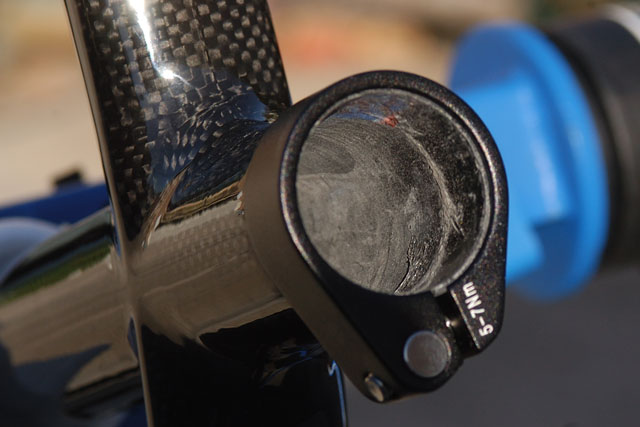

Seatpost clamp : 34.9mm seatpost clamp

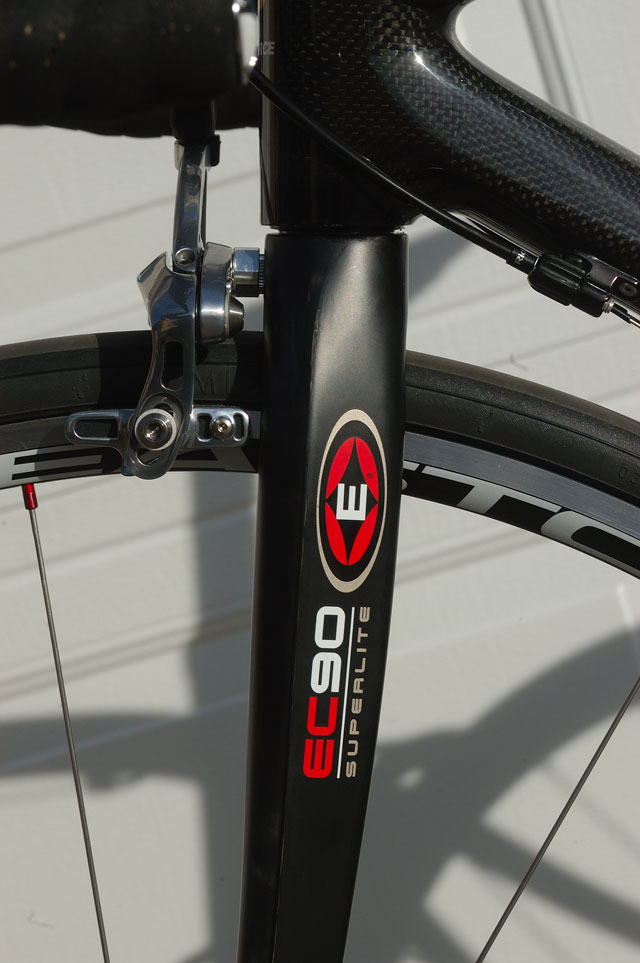

Fork: Easton EC90 SL Fork 1-1/8"
355.8 grams = 12.55 oz. (Uncut)

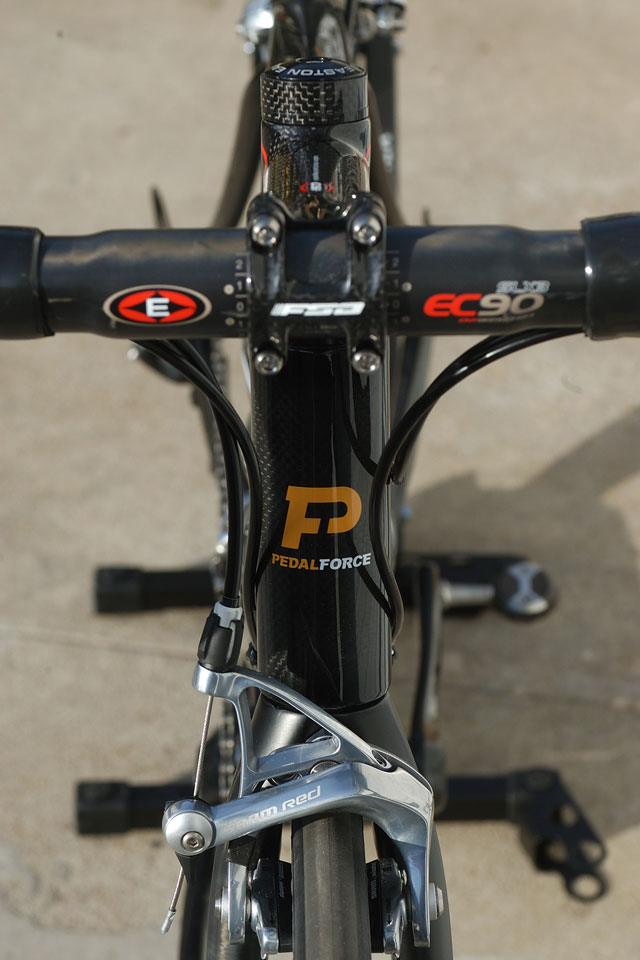

Stem: FSA OS-99 CSI 31.8mm Stem
123.3 grams = 4.35 oz.
Stem length : 100 mm

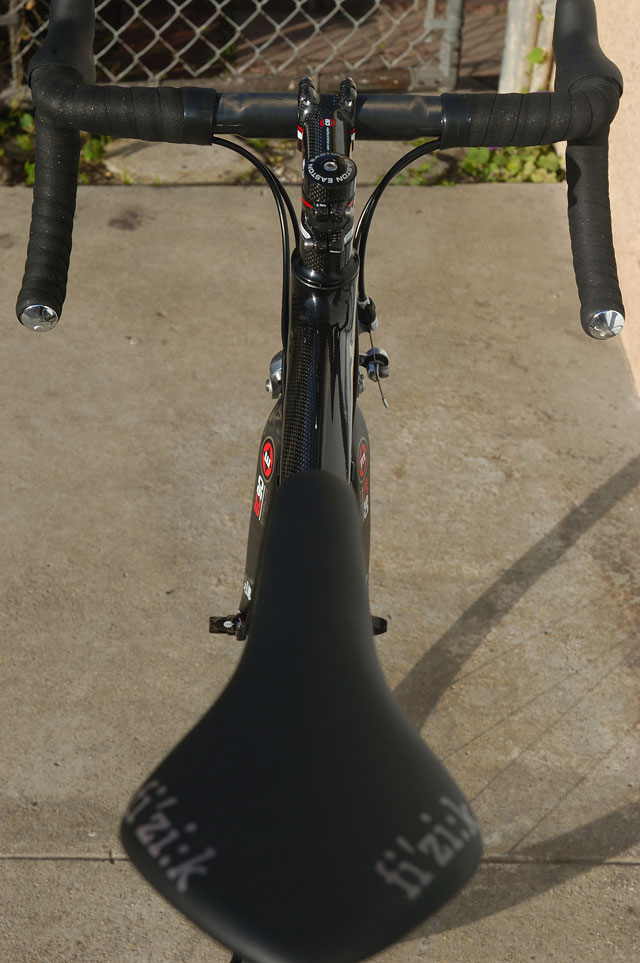

Handlebar: Easton EC90 SLX Ergo 31.8mm Bar
198.4 grams = 7.0 oz.
Handlebar width : 40 cm
Handlebar Tape: Cinelli Cork Tape
Handlebar tape color : Black
Cables: Derailleur and Brake Cable Set

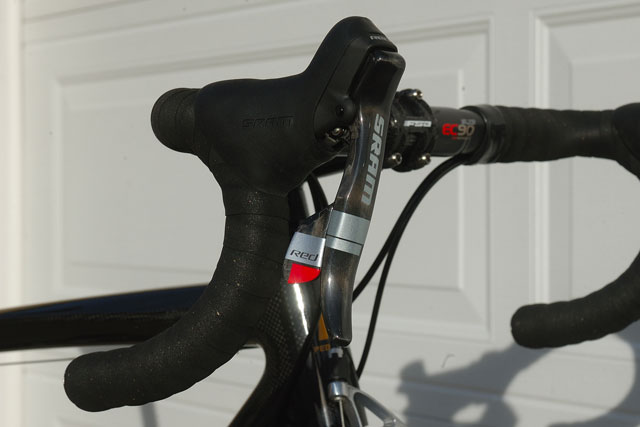

SRAM Red DoubleTap Controls 287.7 grams = 10.50 oz.

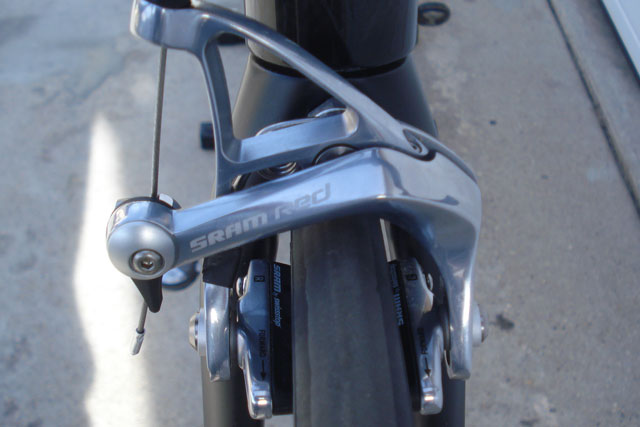

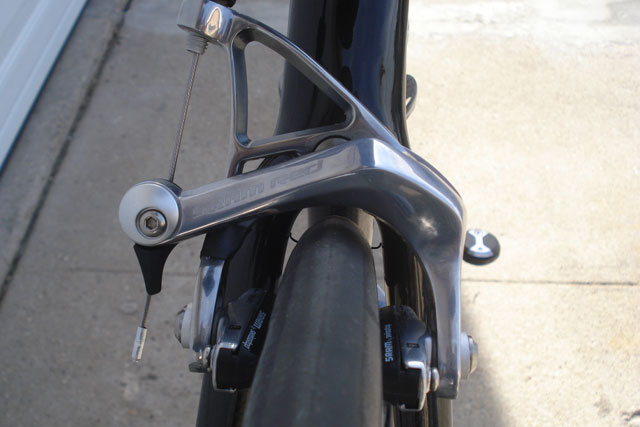

Brakes: SRAM Red Brake Set 276.4 grams = 0.7405 lbs.

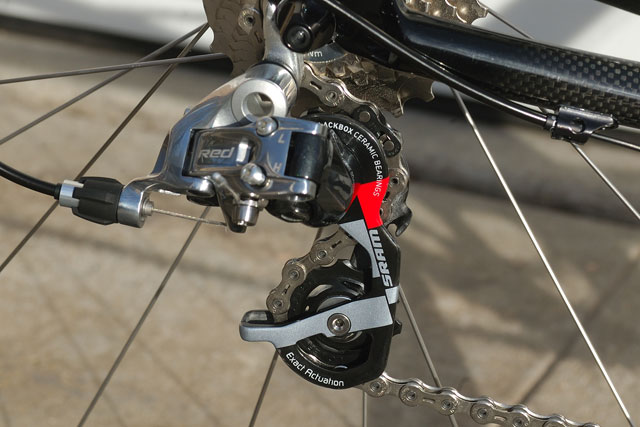

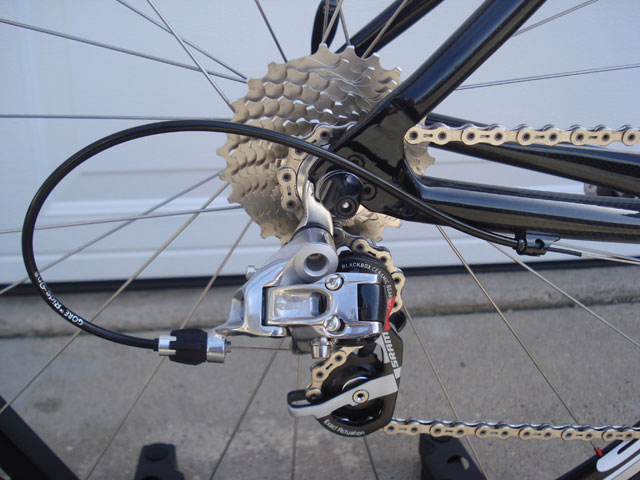

Rear Derailleur: SRAM Red Rear Derailleur 144.6 grams = 5.10 oz.
Front Derailleur: SRAM Red Front Derailleur 34.9mm 83.63 grams = 2.95
oz.

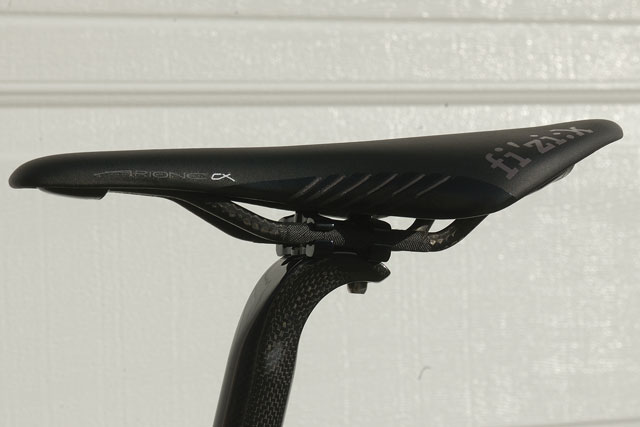

Saddle: Fizik
Arione CX Braided Carbon Rail Saddle - Black
|
Chain: SRAM Force PC-1090R PowerChain
Bottom Bracket: SRAM GXP Ceramic Cup Set
114.8 grams = 4.05 oz

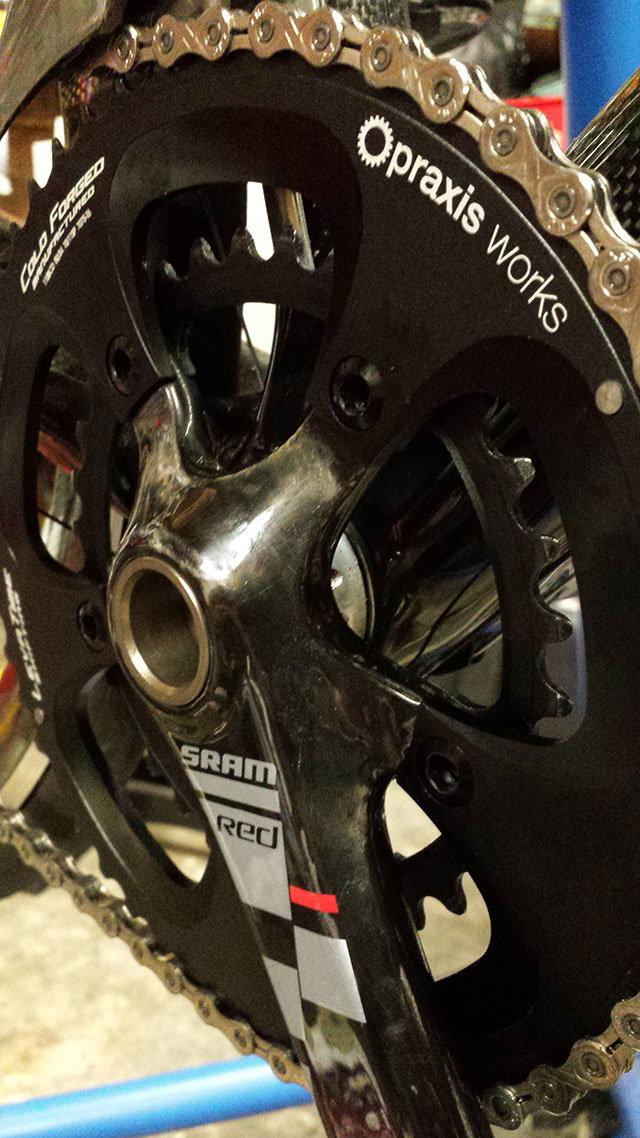

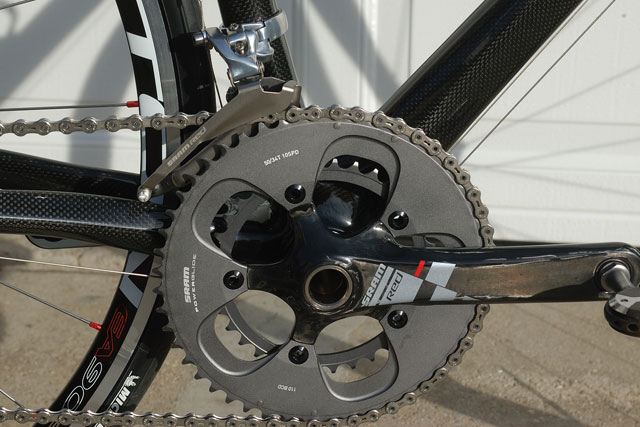

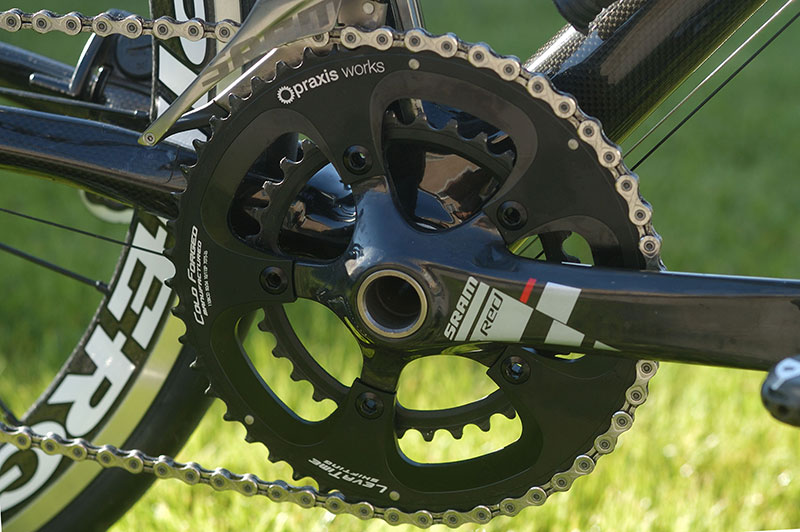

Crankset: SRAM Red Crankset 633.6 grams = 1 6.35 lbs.
Crank length : 170 mm
Chainring combination : 34-50T
Seatpost: P2 300mm x 31.6mm
Headset Compressor: FSA
Headset Spacers: Carbon headset spacers
Headset spacer height : 20 mm
Headset: FSA
CE Integrated 1-1/8" Black

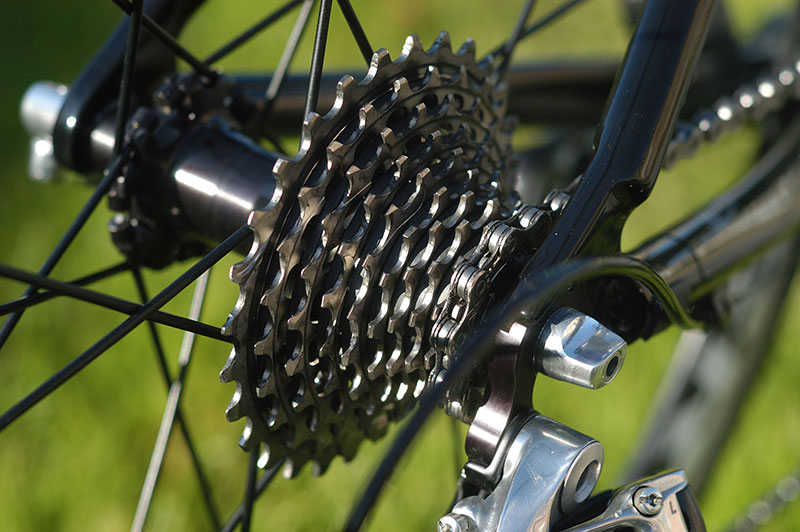

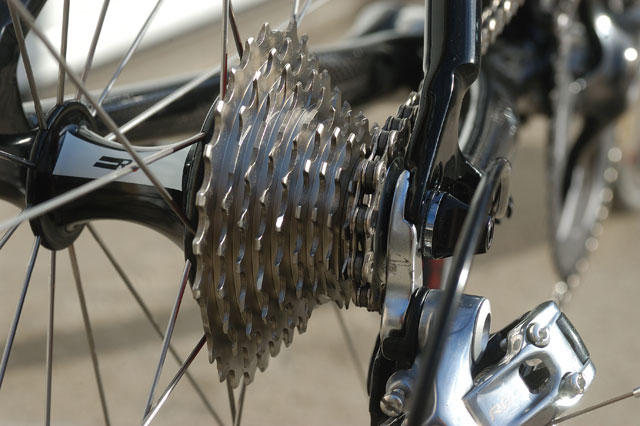

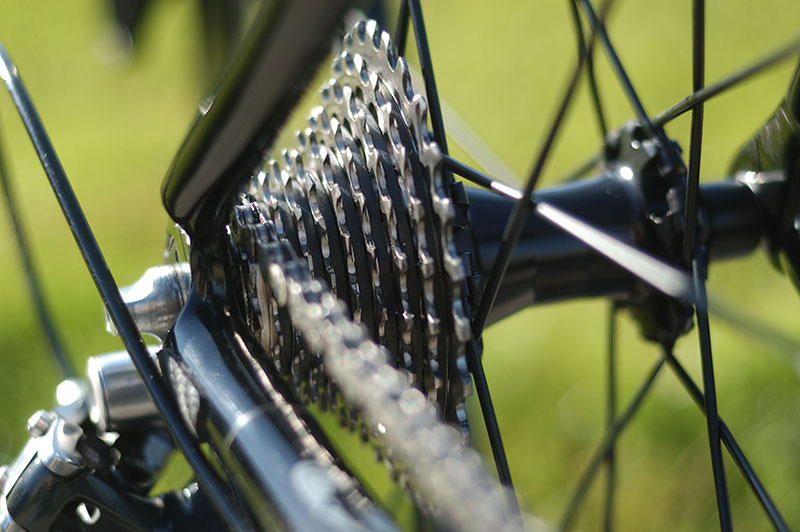

Cassette: SRAM Red OpenGlide 1090 Cassette 165.8 grams = 5.85 oz.
Cassette combination : 11-12-13-14-15-17-19-21-23-26T
Wheelset: EASTON EA90 SLX WHEELS W/QR
Freehub type : SRAM
EASTON EA90 SLX Rear WHEEL wo/skew 839.2 grams = 1 13.60 lbs.
EASTON EA90 SLX wheel wo/skew 603.9 grams = 1 5.30 lbs.
Front Tire: Michelin Pro 3 Race, 700CX23 Kevlar
Color : Gray/Black
Tubes: 700Cx18-25 Butyl Tube, Presta Valve x 2
Rear Tire: Michelin Pro 3 Race, 700CX23 Kevlar
Color : Gray/Black
|
|
|

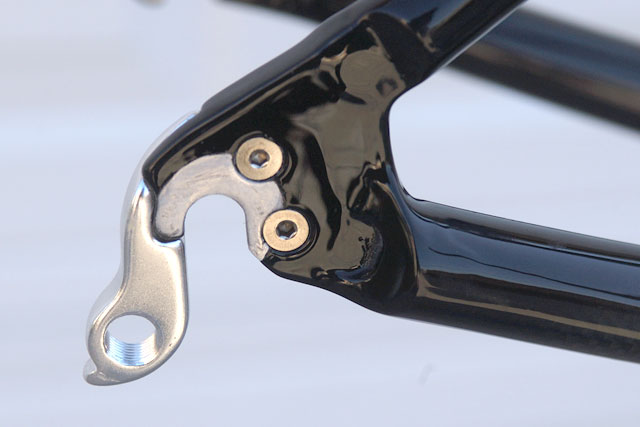

Replaceable rear derailleur hanger

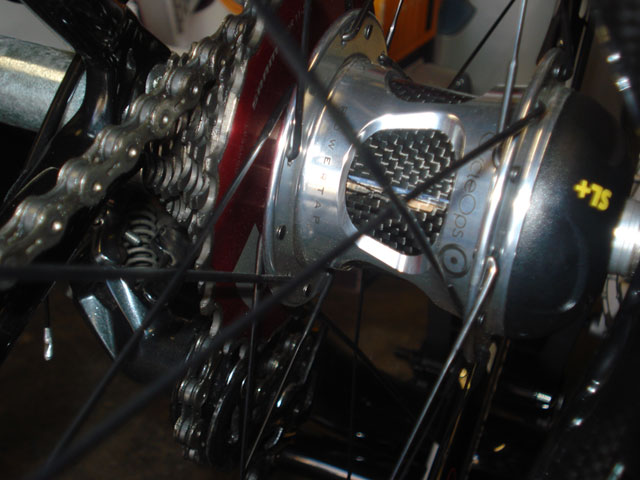

Cycleops Powertap SL+ hub laced to a Kinlin XR-270 rim 24r/2X using CXRay
spokes
on the Drive Side and Non-Drive Side and DT-12mm-Brass-Silver nipples.
Built by PISMIT (Rob) Custom Wheel Builder |

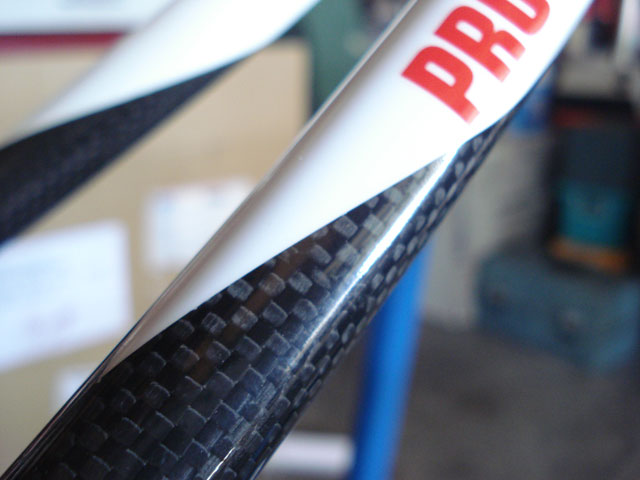

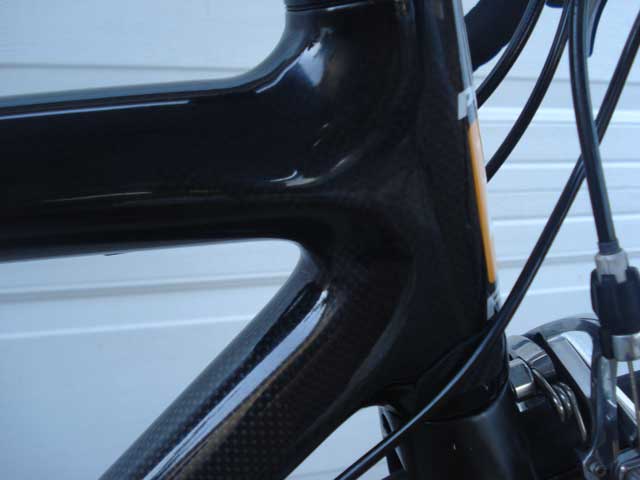

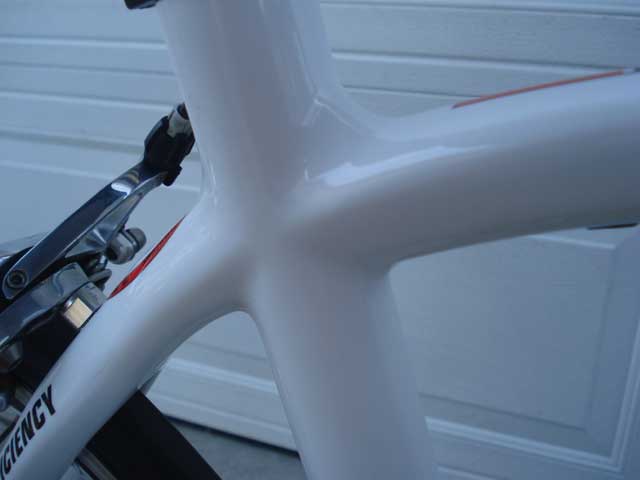

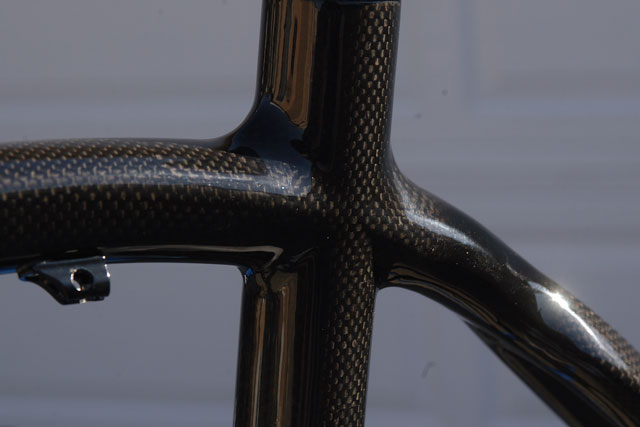

The seams and joints are some of the cleanest I have seen on any frame.

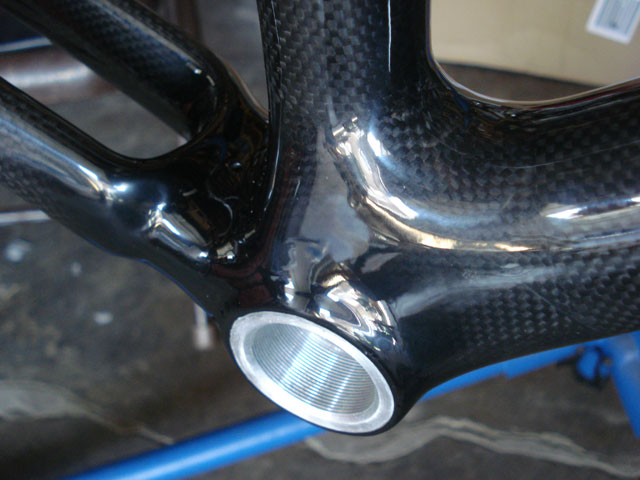

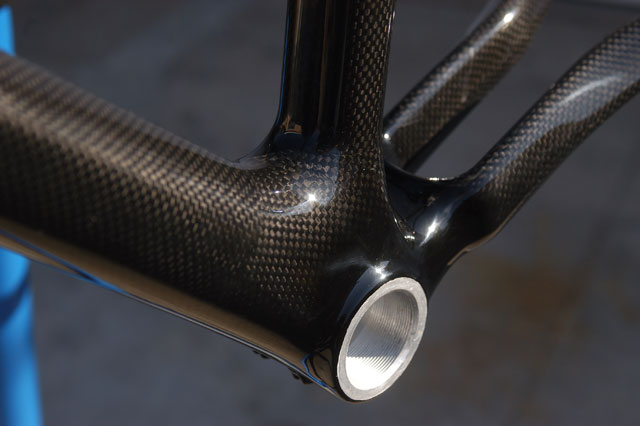

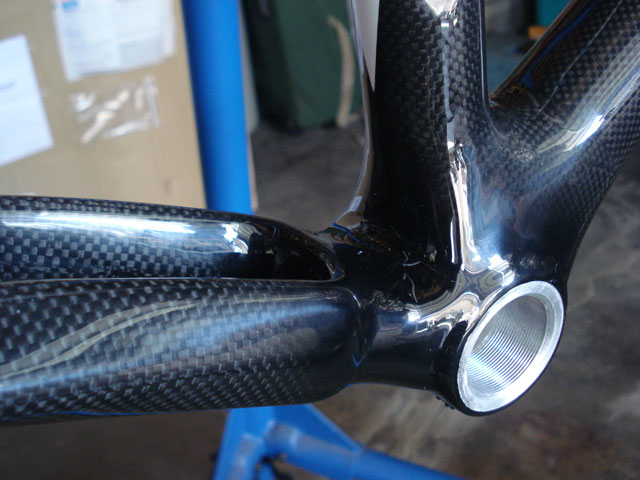

Bottom Bracket is nice and stiff wit a great finish.

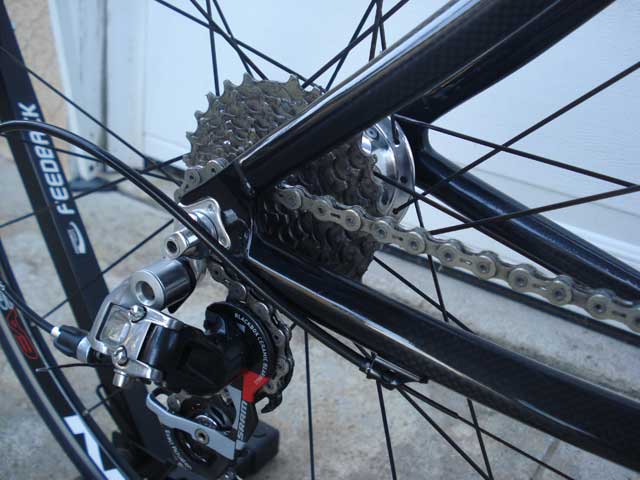

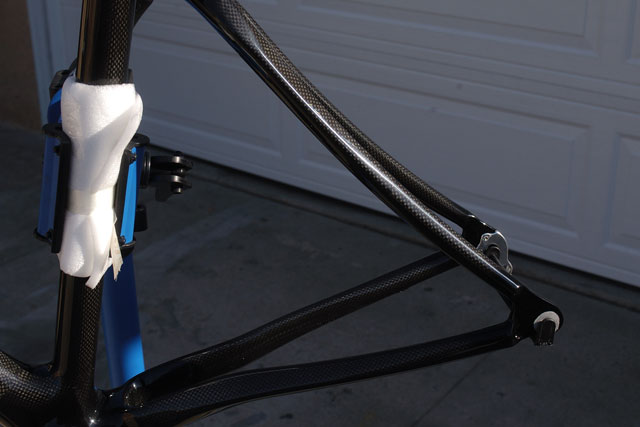

Rear stays have a nice curve to them
Even the inside of the tubing was clean

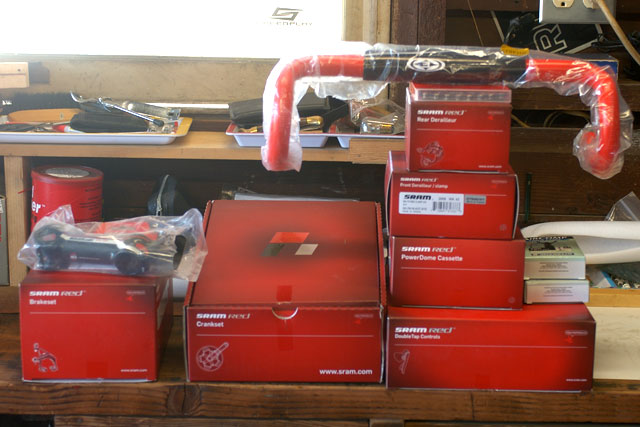

All the parts came in retail boxes and everything to build the frame
came with the order
ready to build, I spent about 6 hours getting it built up cutting steer
on fork and cables took the most time getting it just right it was a fun
process that went very smooth everything fit perfect.
|
|
|
|
|
|
|
|
|
|
